TURNKEY PRODUCTION LINES FOR SOLAR PANELS

Radiant Pv Solar provides complete solar turnkey lines for the manufacturing of photovoltaic modules. We customizes Solar Panel Production Line in order to give the best solutions according to customer requirement.

With development of new solar technology,solar cell dimension is bigger and more efficient,that makes bigger solar panel.

The 15MW Solar Panel Production Line designed from Radiant Pv Solar is good start and minimum annual capacity to make 400-650W solar panel by 166-210mm solar cells.

It is manual line with all offline equipment and better for market with lower labour cost.

Reference Lay out drawing for 15MW Solar Panel Production Line

Solar cell tester*1set

Irradiance range:70mW/cm2～120mW/cm2;

Uniformity of irradiation:≤±3%;

Irradiation instability:≤±1%;

Effective testing dimension:220mm×220mm(5-12BB) ;

Inconsistency of testing: ±1%;

Error of testing result: ±2%;

Fiber scribing machine*1set

Laser output: 20KHz~100KHz continuous adjustable;

Laser power: 30w(400mm/s);

Cutting scribing accuracy:±0.05mm;

Scribing cell size: max 210*210mm;

Worktable size:220*220mm;

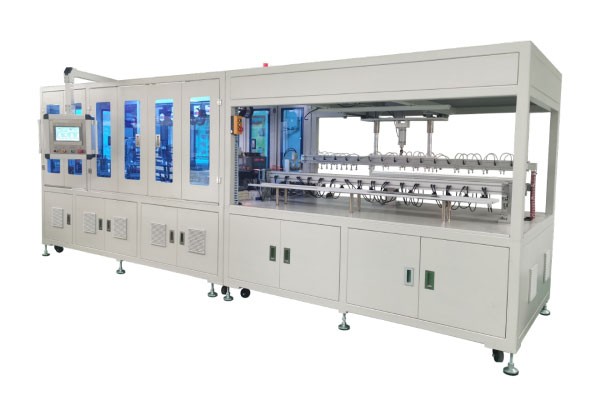

Auto solar stringer*1set

Welding Speed:Max 2 seconds/cell,Max 1800 pcs/hour;

Solar Cell Dimension:39~158*158mm,166*166mm,182*182mm,210*210mm ;

Breakage Rate:≤2‰ (A Grade Solar Cell);

Welding Strings Qty:Single String Welding;

Welding Method:Infrared Heating Welding;

Welding Power:Normal Temperature-400℃ (Adjustable);

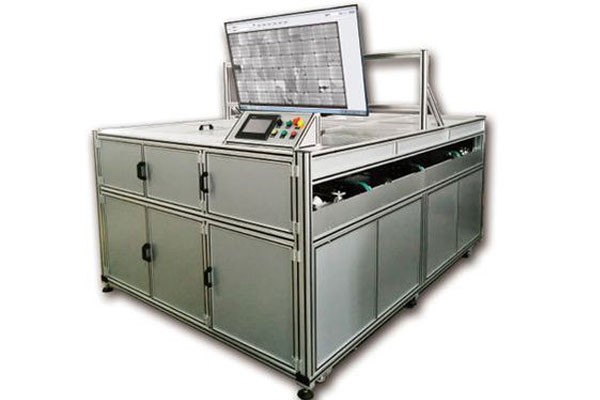

EL tester*1set

Two cameras:Sony+Nikon;

Pixel:6016X4000(2400W);

Image acquisition time:1—60sadjustable;

Camera type:CCD cooling(inside+outside cooling);

It can be detected that the width of cracks is less than 0.5MM;

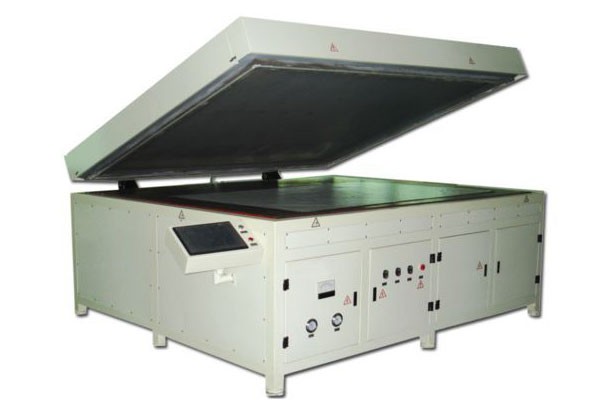

Semi auto Solar Panel Laminator YDB-1525/1526*1set

Laminate area:1500*2600mm;

Control mode:Automatic/ Manual;

Temperature control mode:PID Control;

Work temperature:100℃～160℃;

Temperature uniformity:±1.5℃ Multi-point temperature control;

Controllable temperature precise:≤±0.8℃(at the regulated set temperature value);

Framing machine*1set

Maximum framing size: 2384* 1303mm;

Minimum framing size: 700 *700mm;

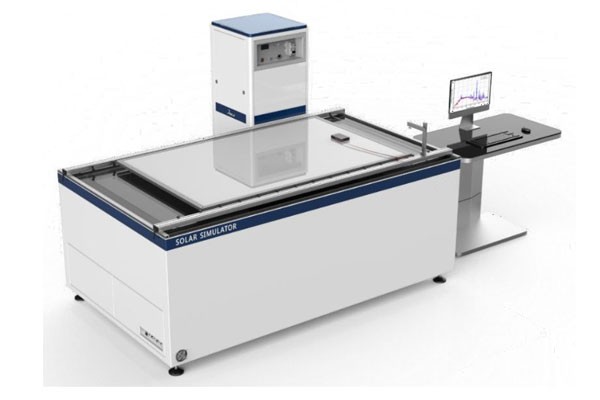

Sun simulator*1set

Irrdiance range:70mW/cm2～120mW/cm2;

Uniformity of irradiation: ≤±3%;

Irradiation instability:≤±1%;

Effective testing dimension:2400mm×1400mm;

Effective testing range:5W～650W;

Inconsistency of testing: ±1%;

Error of testing result:±2%;
