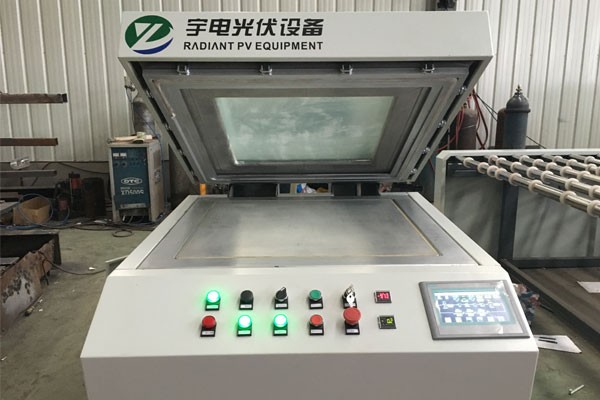

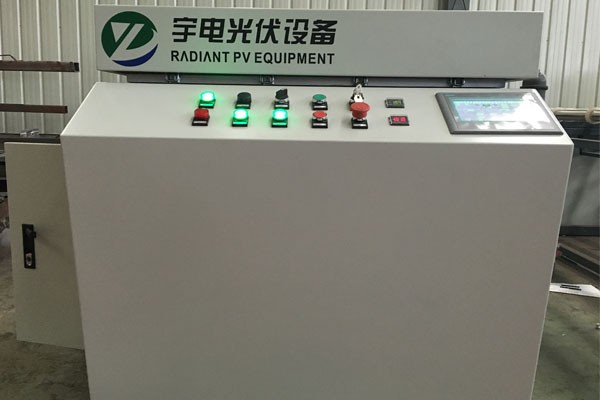

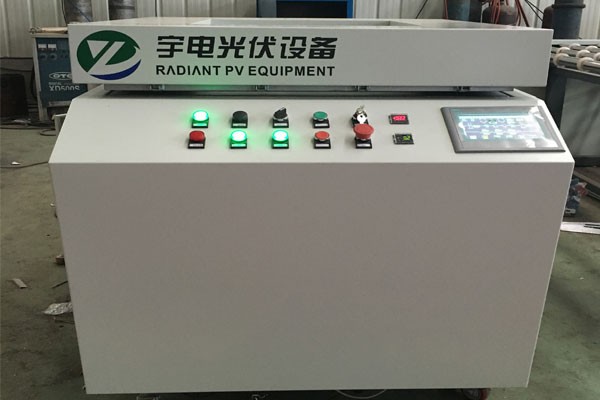

Thin Film Laminator 500*900mm

Description:Thin Film Laminator 500*900mm
Application:Solar material lamination and testing
Lamination area:500*900mm
Heating mode:electric
Power:12Kw
Compressed air:0.5-0.8Mpa

EMAIL


Thin Film Laminator 500*900mm

Model No.

YDS-0509

Lamination area

500*900mm

Heating mode

Electrical heating system

Temperature control mode

PID Control

Temperature uniformity

±2℃ Multi-point temperature control

Maximum temperature

180℃

Work temperature

100℃160℃

Unevenness of the worktable

Unevenness≤300 μm/m²

Peak power

12Kw

Work power

7Kw

Compressed air speed

1-8L/S
