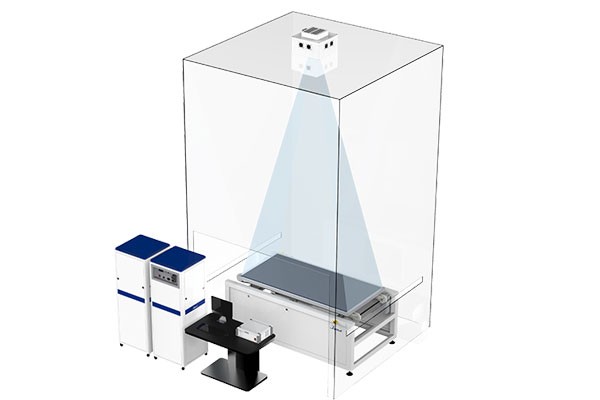

Description:mono crystalline, poly crystalline, PERC, HJT. N type. IBC……. High efficiency and high capacitance solar modules testing
Solar module type:2400*1400mm
Especially designed for high Efficiency solar module IV Testing,such as PERC, HJT, N type, IBC, TopCon …… all high efficiency and high capacitance solar module testing with high transparency EVA.
Capable of full cell,cut-cell,shingled,MBB,LRF ribbon,Glass-Backsheet,Glass- Glass with or without frame,Bi-Facial …… all technologies module accurate testing Effective Testing area up to 2600*1600mm (156,158,166,182, and 210mm cell modules testing).
Pulsed Duration ranges 10-100ms, in step of 10ms.
Light Irradiance ranges 200W/m2-1200W/m2,in step of 100W/m2.
A+A+A+ Class as per IEC IEC 60904-9:2020.
PERC module , using 30-50ms pulse duration, Gsola guarantee lamp lifetime150000 flashes.
Model | GIV-20A2616 | GIV-20ATS | GIV-20AS |
Max Illumination Area | 2600X1600mm | 2400X1400mm | 2200X1200mm |
Light Irradiance | 700-1200W/㎡ | 700-1200W/㎡ | 700-1200W/㎡ |
Spectrum Mis-match | 0.875-1.125, A+ | 0.875-1.125, A+ | 0.875-1.125, A+ |
Spectrum Range | 300-1200nm | 300-1200nm | 300-1200nm |
Instability of Irradiance | 0.5%, A+ | 0.5% , A+ | 0.5%, A |
Non-Uniformity of Irradiance | 1% , A+ | <1% , A+ | <2% , A+ |
Measurement Range | Voltage0-1V/10V/50V/100V/200V Current 0-0.25A/1A/5A/10A/20A | Voltage0-1V/10V/50V/100V/200V Current 0-0.25A/1A/5A/10A/20A | Voltage0-1V/10V/50V/100V/200V Current 0-0.25A/1A/5A/10A/20A |
Pulse Duration | 10-100ms | 10-100ms | 10-100ms |
Dimensions | 2000X3000X5500mm | 2000X3000X5500mm | 2000X3000X5500mm |
Electricity | AC220-240V,10A,50/60 HZ | AC220-240V,10A,50/60 HZ | AC220-240V,10A,50/60 HZ |
Feature
1.Capable of mono crystalline,poly crystalline,PERC,HJT,N type,IBC…… all high efficiency and high capacitance solar module using high transparency EVA.
2.Capable of full cell,cut-cell,shingled,MBB,LRF ribbon,Glass-Backsheet,Glass- Glass with or without frame,Bi-Facial…… all technologies module testing.
3.Effective Testing area up to 2600*1600mm (156,158,166,182,and 210mm cell modules testing).
