Solar Simulator
Description:mono crystalline, poly crystalline, PERC, HJT. N type. IBC……. High efficiency and high capacitance solar modules testing
Solar module type:2400*1400mm

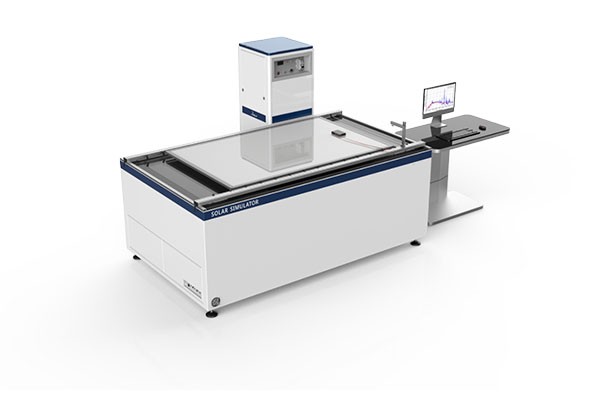

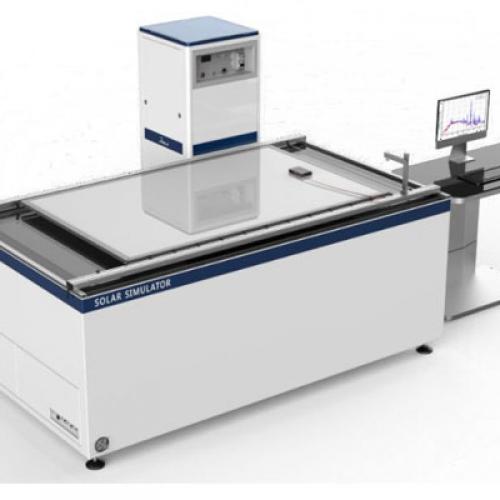

Radiant solar simulator is table type,easy integrated in auto solar module production line,easy cable connection,operation and maintenance,fast testing speed.It is A+A+A+ Class,long pulse duration ranging from 10ms to 300ms,capable of mono crystalline, poly crystalline,PERC,HJT,N type,IBC……. High efficiency and high capacitance solar modules testing,testing area 2.4m*1.4m.
Model | XJCM-13A2414 (IEC A+A+A+) | XJCM-12A+ (IECA+A+A+) | XJCM-11A +(IECA+A+A+) | XJCM-9A (IECAAA) |
Max Illumination Area | 2400x1400mm | 2200x1200mm | 2000x1100mm | 2000x1100mm |
Light Irradiance | 700-1200W/㎡ | 700-1200W/㎡ | 700-1200W/㎡ | 200-1200W/㎡ |
Spectrum Mis-match | 0.875-1.125, A+ | 0.875-1.125, A+ | 0.875-1.125, A+ | 0.75-1.25, A |
Spectrum Range | 300-1200nm | 300-1200nm | 300-1200nm | 400-1100nm |
Instability of Irradiance | <1% , A+ | <1% , A+ | <1% , A+ | <2% , A |
Non-Uniformity of Irradiance | 220V 10A，Single phase | <1% , A+ | <1% , A+ | <2% , A+ |
Repeatability | 0.3% | 0.3% | 0.3% | 0.5% |
Measurement Range | Voltage 0-1V/10V/50V/100V/200V Current 0-0.25A/1A/2.5A/12.5A/20A | Voltage 0-1V/10V/50V/100V/200V Current 0-0.25A/1A/2.5A/12.5A/20A | Voltage 0-1V/10V/50V/100V/200V Current 0-0.25A/1A/2.5A/12.5A/20A | Voltage 0-1V10V/50V/100V Current 0-0.25A/1A/2.5A/10A |
Pulse Duration | 10~150ms, in step of 10ms | 10~150ms, in step of 10ms | 10~150ms, in step of 10ms | 10ms |
Electricity | AC220-240V,10A,50/60 HZ | AC220-240V,10A,50/60 HZ | AC220-240V,10A,50/60 HZ | AC220-240V,10A,50/60 HZ |
Light Source | Xenon Lamp | Xenon Lamp | Xenon Lamp | Xenon Lamp |
Module Type | Mono crystalline, poly crystalline, PERC, HIT, HJT, N type, IBC…… | Mono crystalline, poly crystalline, PERC, HIT, HJT, N type, IBC…… | Mono crystalline, poly crystalline, PERC, HIT, HJT, N type, IBC…… | Mono crystalline, poly crystalline |
